L-band EDFA

L-band EDFA

L-band EDFA

The AMP-FL8001-LB series is a bench-top L-band EDFA generating maximum 23 dBm in the L-band, that will be increasingly significant in increasing the WDM system. High gain, excellent gain flatness, and low noise property are achieved in a wide range from 1560 to 1610 nm.

Product Type : Bench Top

Operating Wavelength:1560 nm ~1610 nm

Contact Sales

FEATURES

  • Proven in Valious Deployment Conditions (from R&D to Actual Network)
  • Turn-Key Operation
  • RS-232C and GP-IB

APPLICATIONS

  • Laboratory Use
  • Test and Measurement
  • Integration in System

MAIN SPECS

Product Number Operating
WaveLength
(nm)
Nominal
WL
(nm)
Output
Power
(dBm)
(*1)
Gain
(dB)
(*2)
NF
(dB)
(*2)
IN/OUT
Fiber
Standard
Connector
IN/OUT
Isolator
Std. Dimension
(H x W x D, mm)
(*3)
AMP-FL8001-LB-13 1560 to 1610 1580 ≥ +13 ≥ 25 ≤ 6 SMF (*4) FC/PC Built In 88 x 260 x 350
AMP-FL8001-LB-16 1560 to 1610 1580 ≥ +16 ≥ 30 ≤ 6 SMF (*4) FC/PC Built In 88 x 260 x 350
AMP-FL8001-LB-19 1560 to 1610 1580 ≥ +19 ≥ 35 ≤ 6 SMF (*4) FC/PC Built In 88 x 260 x 350
AMP-FL8001-LB-22 1560 to 1610 1580 ≥ +22 ≥ 35 ≤ 6 SMF (*4) FC/PC Built In 88 x 260 x 350


(*1) Input Power: 0 dBm @ Nominal Wavelength
(*2) Input Power: -30 dBm @ Nominal Wavelength
(*3) Does not include protrusions
(*4) G.652 compliant (e.g. SMF28)

OTHER SPECS

Attribute Specification
Control Mode ACC (Auto Current Control) and ALC (Auto Light Control)
Monitor & Alarm Output power / Pump LD current / Pump LD temperature / Case temperature
Safety Function Remote Interlock
Safety Function Remote Interlock / Interlock with input Alarm
Remote Interface RS-232C / IEEE488.1 (GP-IB)
Temperature Operation : 0 to 40 ºC / Storage : -10 to 60 ºC
Power Supply AC 100 to 240 V (50/60 Hz)

Options

Number Option
-012 FC/APC Connector
-013 SC/PC Connector
-014 SC/APC Connector
-091 Input Monitor and Interlock
(NF spec: +0.5 dB)
-093 Reflection Monitor and Interlock
-121 Rack-mount kit
Size: 88(H)x440(W)x350(D) mm
-122 Rack-mount kit
Size: 88(H)x260(W)x350(D) mm
-123 Rack-mount kit
Size: 88(H)x440(W)x350(D) mm

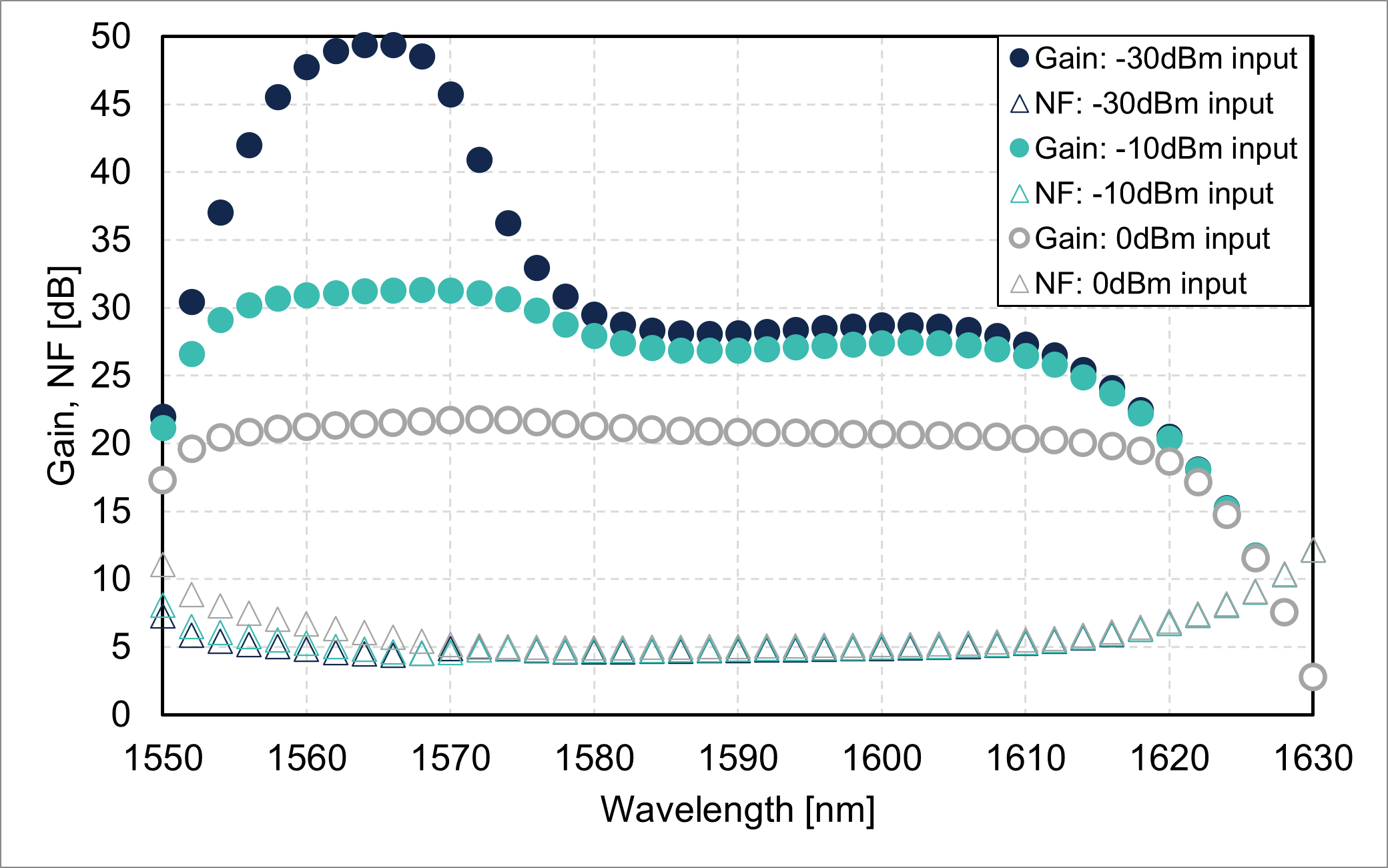

Gain/noise figure vs. wavelength (FL8001-LB-13)
Gain/noise figure vs. wavelength (FL8001-LB-13)

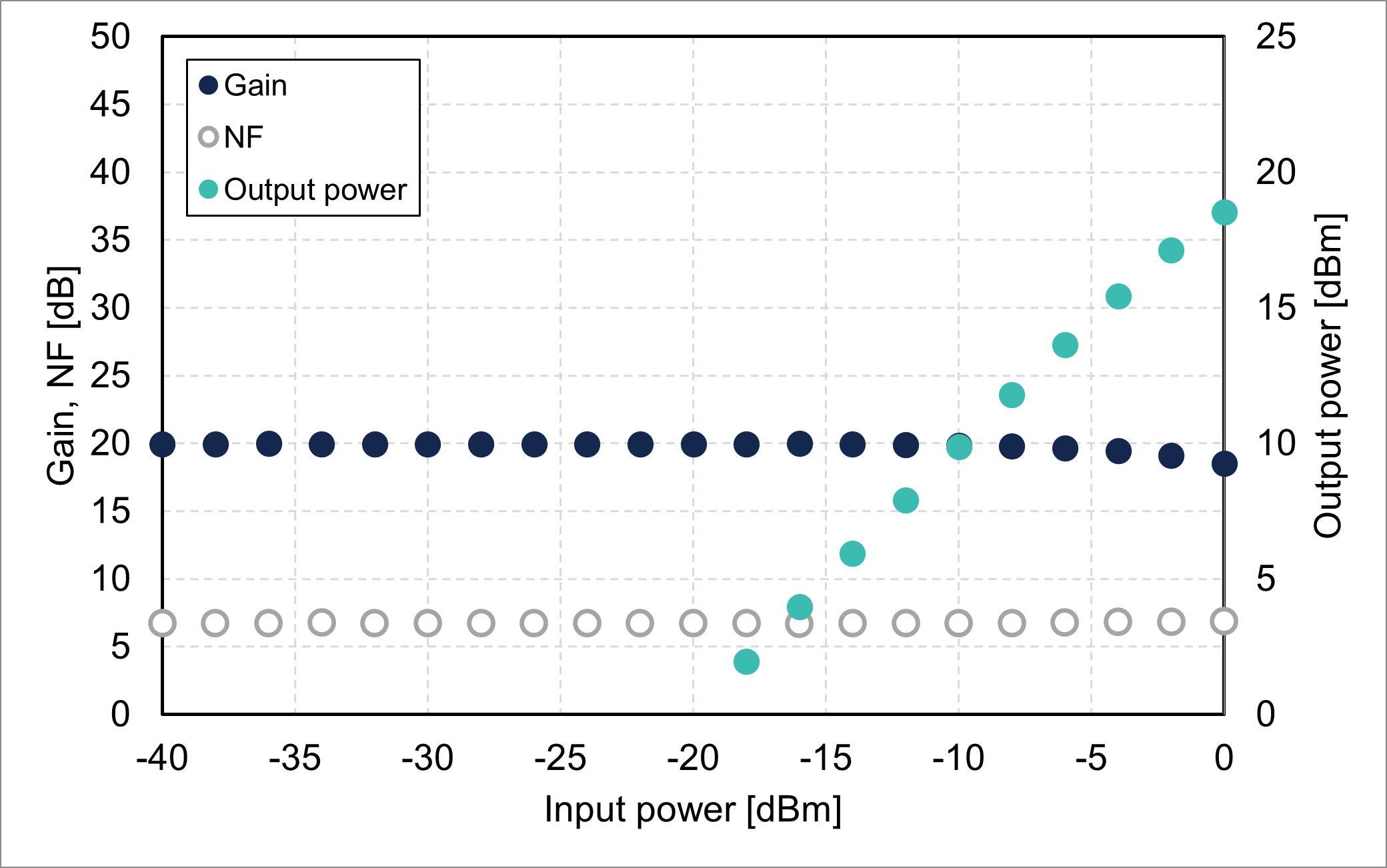

Gain/NF/output power vs. input power @1580 nm (FL8001-LB-13)
Gain/NF/output power vs. input power @1580 nm (FL8001-LB-13)
Gain/noise figure vs. wavelength (FL8001-LB-16)
Gain/noise figure vs. wavelength (FL8001-LB-16)
Gain/NF/output power vs. input power @1580 nm (FL8001-LB-16)
Gain/NF/output power vs. input power @1580 nm (FL8001-LB-16)
Gain/noise figure vs. wavelength (FL8001-LB-19)
Gain/noise figure vs. wavelength (FL8001-LB-19)
Gain/NF/output power vs. input power @1580 nm (FL8001-LB-19)
Gain/NF/output power vs. input power @1580 nm (FL8001-LB-19)
Gain/noise figure vs. wavelength (FL8001-LB-22)
Gain/noise figure vs. wavelength (FL8001-LB-22)
Gain/NF/output power vs. input power @1580 nm (FL8001-LB-22)
Gain/NF/output power vs. input power @1580 nm (FL8001-LB-22)
