L-band EDFA

FiberLabs offers L-band EDFA modules that can be integrated in optical instruments.

Product Type : OEM module

Operating Wavelength:1560 nm ~1610 nm

Contact Sales

FEATURES

  • Proven in Valious Deployment Conditions (from R&D to Actual Network)
  • RS-232C connection
  • Evaluation Board Available

APPLICATIONS

  • OEM Integration
  • Integration in System

MAIN SPECS

Product Number Operating
WaveLength
(nm)
Nominal
WL
(nm)
Output
Power
(dBm)
(*1)
Gain
(dB)
(*2)
NF
(dB)
(*2)
IN/OUT
Fiber
Standard
Connector
IN/OUT
Isolator
Std. Dimension
(H x W x D, mm)
(*3)
AMP-GB9001-LB-13 1560 to 1610 1580 ≥ +13 ≥ 25 ≤ 6 SMF (*4) FC/PC Built In 18 x 120 x 90
AMP-GB9001-LB-16 1560 to 1610 1580 ≥ +16 ≥ 30 ≤ 6 SMF (*4) FC/PC Built In 18 x 120 x 90
AMP-GB9001-LB-19 1560 to 1610 1580 ≥ +19 ≥ 35 ≤ 6 SMF (*4) FC/PC Built In 18 x 120 x 90


(*1) Input Power: 0 dBm @ Nominal Wavelength
(*2) Input Power: -30 dBm @ Nominal Wavelength
(*3) Does not include protrusions
(*4) G.652 compliant (e.g. SMF28)

OTHER SPECS

Attribute Specification
Control Mode ACC (Auto Current Control)
Monitor & Alarm Output power / Pump LD current / Pump LD temperature
Safety Function Pump LD shutdown (LDSD)
Temperature Operation : 0 to 40 ºC / Storage : -10 to 60 ºC
Power Supply DC 5.1 ~ 5.4 V

Options

Number Option
-012 FC/APC Connector
-013 SC/PC Connector
-014 SC/APC Connector
-031 Gain Block temperature monitor
-091 Input Monitor and Interlock
(NF spec: +0.5 dB)
-102 Control Software for adjustment
-111 Evaluation Board (RS-232C level converter)

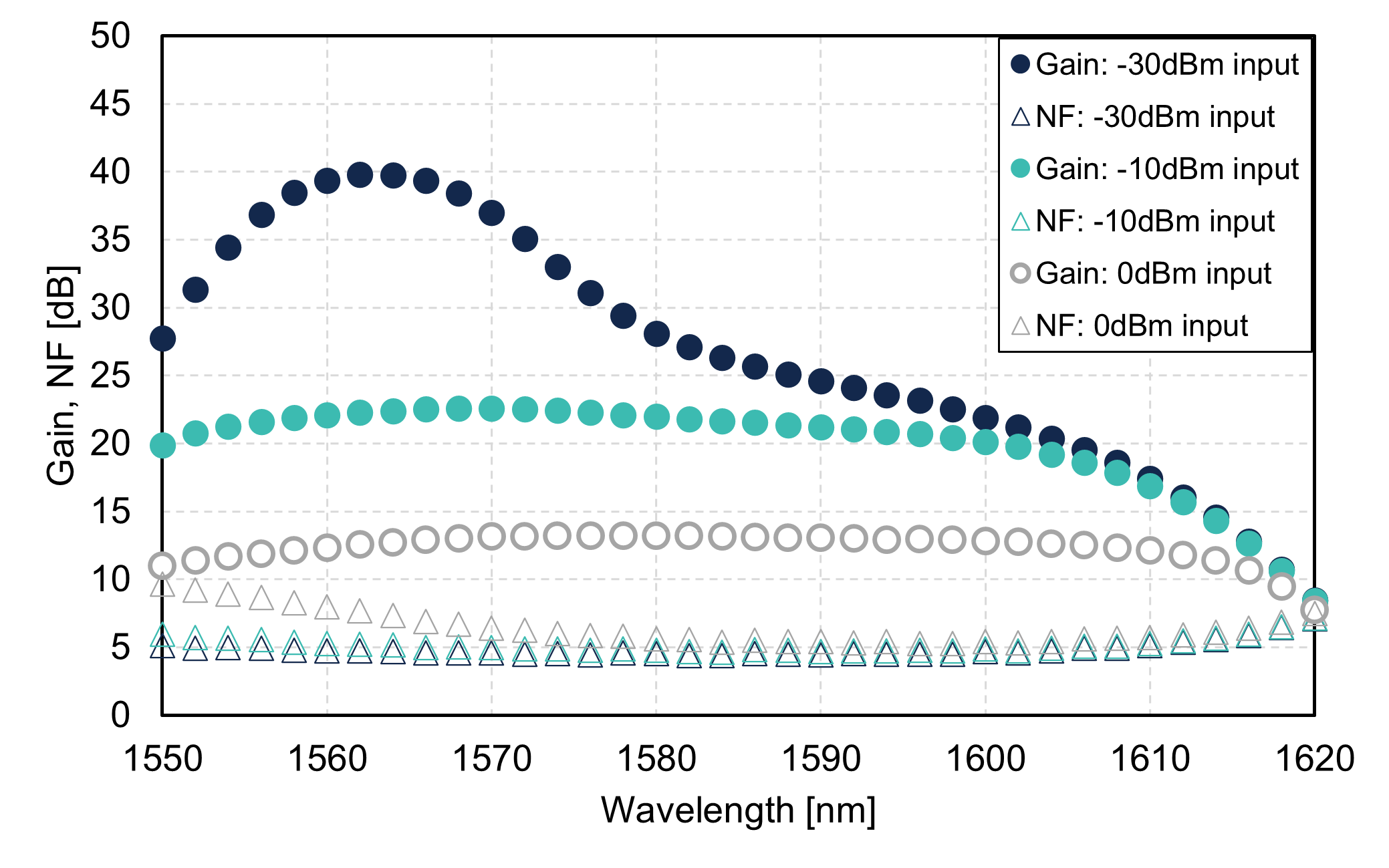

Gain/noise figure vs. wavelength (GB9001-LB-13)
Gain/noise figure vs. wavelength (GB9001-LB-13)

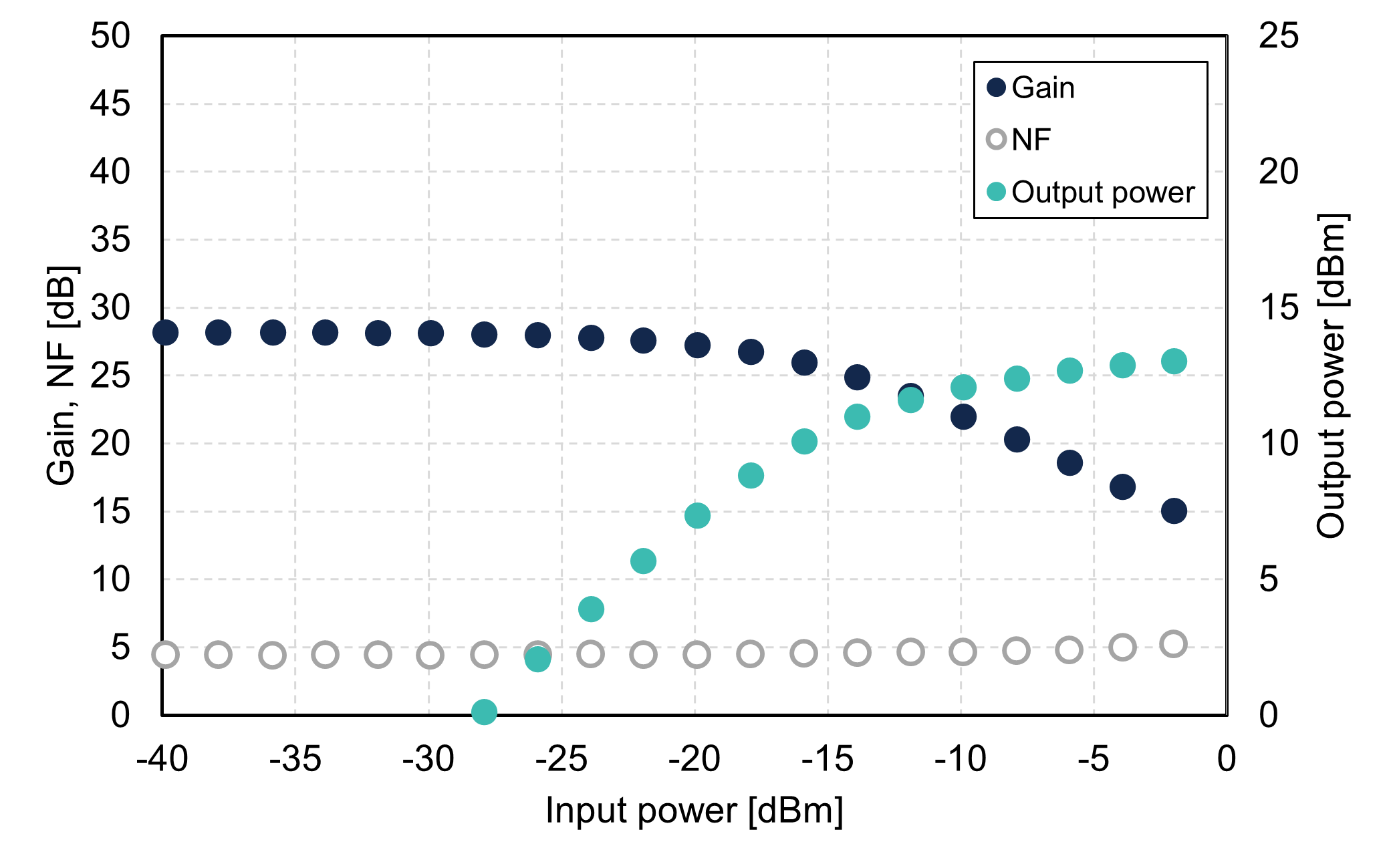

Gain/NF/output power vs. input power @1580 nm (GB9001-LB-13)
Gain/NF/output power vs. input power @1580 nm (GB9001-LB-13)
Gain/noise figure vs. wavelength (GB9001-LB-16)
Gain/noise figure vs. wavelength (GB9001-LB-16)
Gain/NF/output power vs. input power @1580 nm (GB9001-LB-16)
Gain/NF/output power vs. input power @1580 nm (GB9001-LB-16)
Gain/noise figure vs. wavelength (GB9001-LB-19)
Gain/noise figure vs. wavelength (GB9001-LB-19)
Gain/NF/output power vs. input power @1580 nm (GB9001-LB-19)
Gain/NF/output power vs. input power @1580 nm (GB9001-LB-19)
Gain/noise figure vs. wavelength (GB9001-LB-22)
Gain/noise figure vs. wavelength (GB9001-LB-22)
Gain/NF/output power vs. input power @1580 nm (GB9001-LB-22)
Gain/NF/output power vs. input power @1580 nm (GB9001-LB-22)
