S+C+L-band ASE

The ASE-FL7701 is an ultra-wideband ASE light source covering all of the S-, C- and L-bands. Tm-doped fluoride fibers, Er-doped fluoride fibers, and Er-doped silica fibers are combined to achieve spectral power density of -20 dBm/nm over a wide wavelength range between 1460 and 1605 nm. The ultra-wideband light source can be used as a light source for characterization of optical devices for WDM and transmission systems and optical component for CWDM. The gain-flattened model, option -032, is available with 5 pcs MOQ.

Product Type : Bench Top

Operating Wavelength:1460 nm ~1600 nm

Contact Sales

FEATURES

  • Broad Bandwidth
  • Low Coherence
  • Low DOP (less than 5%)
  • Turn-Key Operation

APPLICATIONS

  • Laboratory Use
  • Test and Measurement
  • Integration in System

MAIN SPECS

P/N Operation
Wavelength
(nm)
Output
Power
(dBm)
Spectral
Power Density
(dBm/nm)
Output
Fiber
Standard
Connector
Output
Isolator
Dimension
(H x W x D, mm)
(*1)
ASE-FL7701 1460 to 1610 ≥ +11 ≥ -25 (1460 nm)
≥ -17 (1480 to 1600 nm)
≥ -25 (1610 nm)
SMF (*2) FC/PC Built In 88 x 260 x 350


(*1) Does not include protrusions
(*2) G.652 compliant (e.g. SMF28)

OTHER SPECS

Attribute Specification
Temperature Operation : 0 to 40 ºC / Storage : -10 to 60 ºC
Power Supply AC 100 to 240 V (50/60 Hz)

Options

Number Option
-012 FC/APC Connector
-013 SC/PC Connector
-014 SC/APC Connector

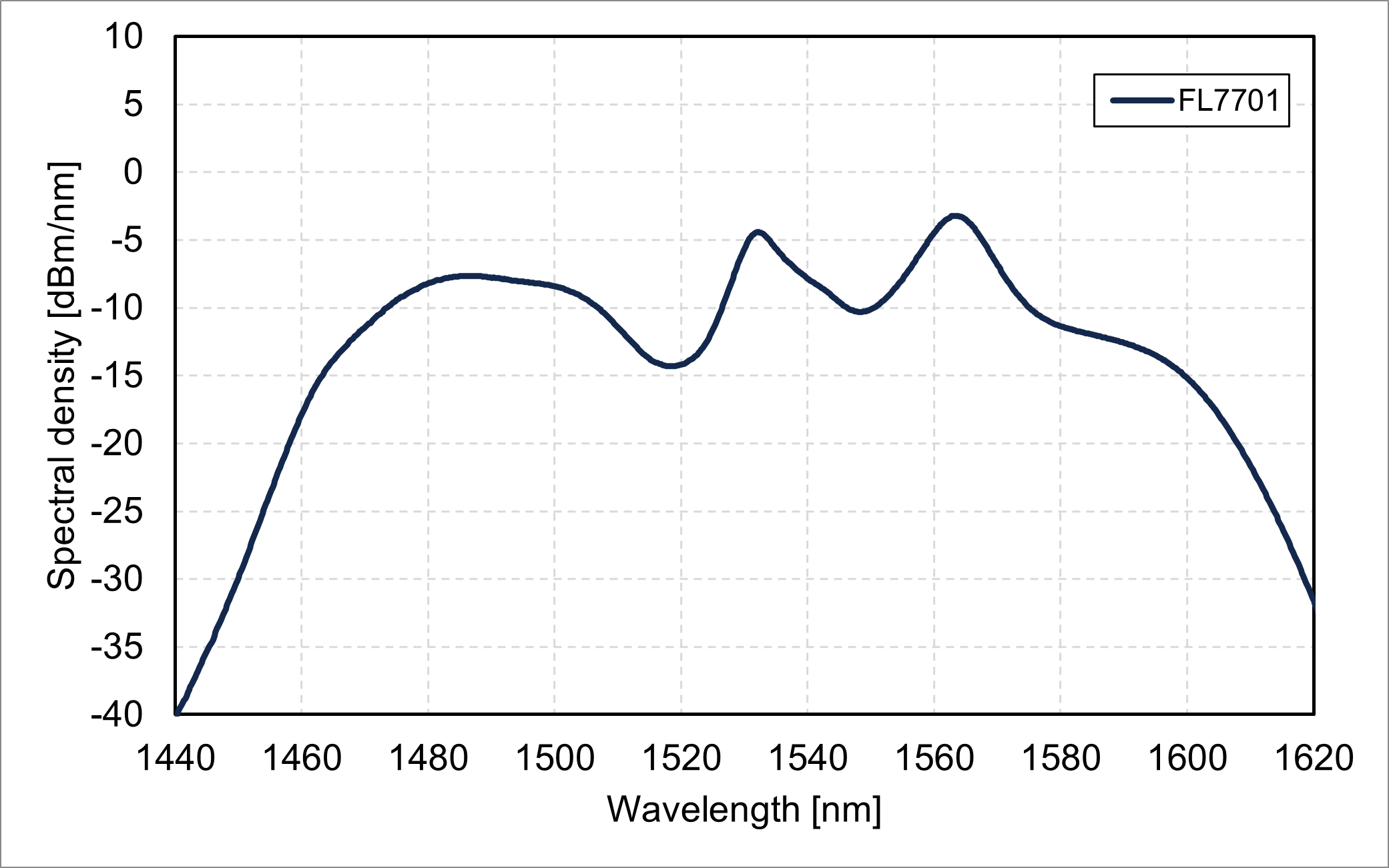

Spectral density vs. wavelength (FL7701)
Spectral density vs. wavelength (FL7701)
